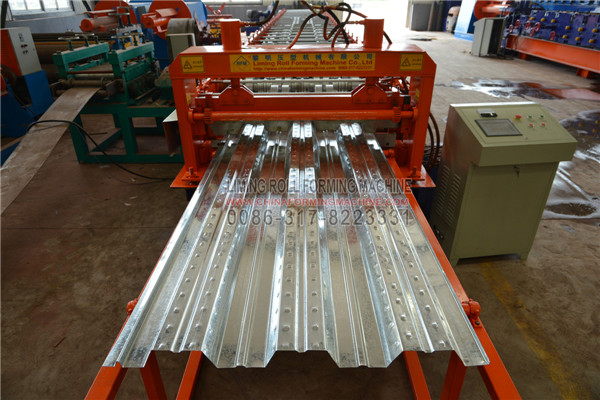

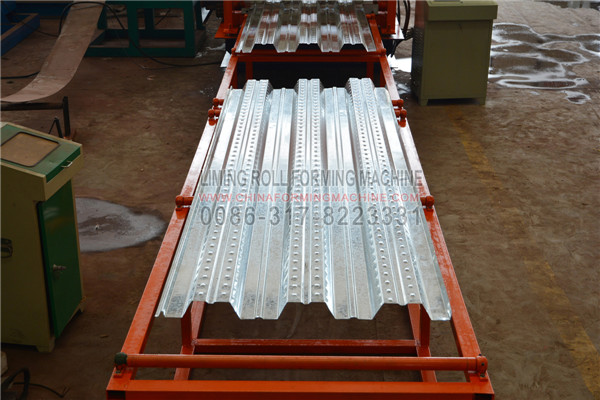

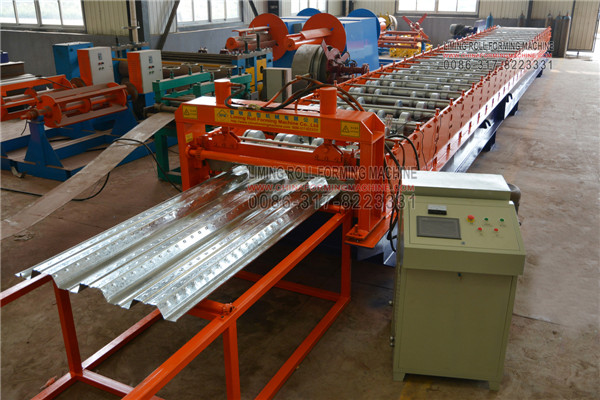

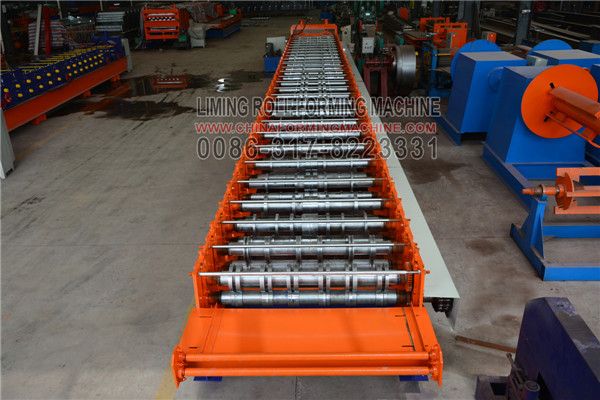

Introduction Of Floor Deck Roll Forming Machine

Floor
deck roll forming machine (steel plate, building pressure plate) is the use of
galvanized steel plate by rolling cold forming, the cross-section into a
V-shaped, U-shaped, trapezoidal or similar shape of these waveforms, as a
concrete floor of the permanent Template,
but also the lower part of the floor of the reinforced steel to participate in
the floor of the force calculation, together with the concrete work together to
form a combination of floor.

Floor
deck roll forming machine requirements: 1: the weight of the composite floor, Floor deck roll forming machine used by the pressure plate
should be used galvanized steel, the thickness of its galvanized layer should
still meet the requirements in the period of time without rust damage.2: the
average width of the groove of the mixed land should not be less than 50 mm. When
the stud connector is provided in the tank, the total height of the combined
floor shall not be greater than 80 mm.3: the thickness of the composite plate
should not be less than 90 mm; pressure plate above the top of the mixed soil
thickness should not be less than 50 mm.4: anchor requirements: the end of the
combination board should be set bolt anchor.The pegs shall be provided at the
concave ribs of the compression plate of the end bearing, penetrate the
pressure plate and the pegs and the steel plate shall be welded to the steel
beam.5: The length of the support plate in the steel plate shall not be less
than 50 mm. The length of the support on the masonry shall not be less than 75
mm.


If
you want to learn more detail about the “Floor deck roll forming machine roll
forming machine”,you’re welcomed to contact with Dan.
Whatsapp:+8615716892381
E-mail:horseamachine03@chinaformingmachine.com
